Direct-to-Deck EPS Roof Insulation

About Direct-to-Deck Roof Insulation

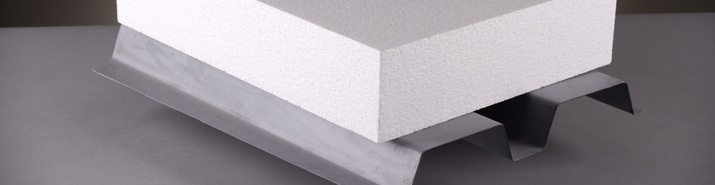

Direct-to-Deck expanded polystyrene (EPS) is a cost-effective, durable and energy-efficient solution for roof insulation. With the release of ICC-ES Evaluation Report ESR-2043, expanded polystyrene (EPS) roof insulation can be applied directly over steel roof decks without the use of a code-specified thermal barrier, resulting in reduced material and labor costs.

ACH Foam Technologies’ Direct-to-Deck EPS roof insulation is compatible with all major roofing materials and assemblies. Additional benefits, such as design flexibility, resistanceFoam-Control EPS Roof Insulation to moisture and high R-Value, make ACH Foam Technologies' EPS roof insulation the preferred roofing solution among Contractors, Architects and Engineers.


ICC-ES Code Evaluation for Direct-to-Deck Roof Insulation


ICC-ES Evaluation Report ESR-2043 approves EPS to be applied directly over steel roof decks as a component of a Class A, B or C roof covering.

Assemblies


Ballasted, Mechanically Attached and Fully-Adhered.

Steel Deck


Minimum 22 gauge and a maximum 45 mil membrane.

Maximum Thicknesses


9.0 inches @ 1.00 pcf density
7.2 inches @ 1.25 pcf density
6.0 inches @ 1.50 pcf density
4.5 inches @ 2.00 pcf density

Accepted Membranes


Includes: EPDM, CPE , CSPE, PVC, CR, NBP, EIP, EP, PIB, TPO and TPA.

Cover Board (when required)


1/4 inch Dens-Deck or 1/2 inch wood fiber board.

For complete assembly information, refer to ICC-ES Evaluation Report ESR-2043.


Direct-to-Deck EPS Roof Insulation Manufacturing


Strict manufacturing specifications, quality control and thorough evaluations conducted by ICC-ES assure our customers receive a consistently superior product. ACH Foam Technologies provides quality UL-labeled Direct-to-Deck expanded Polystyrene (EPS) roof insulation.

ACH Foam Technologies' Direct-to-Deck EPS roof insulation is recyclable and environmentally friendly. It contains no CFCs, HFCs, HCFCs or Formaldehyde.
