TF System® ICF Components

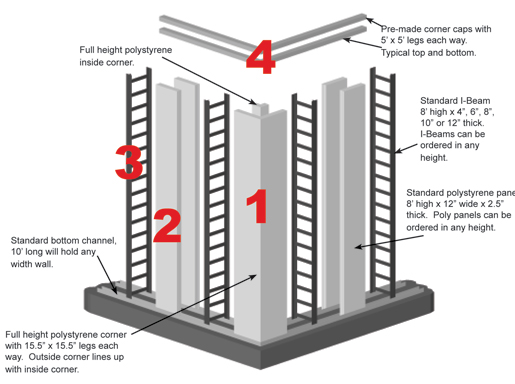

The 4 Components of TF System® ICFs
Pre-Made Corners:
Full-height EPS corners for extra strength and ease of installation.
Panels:
2 1/2” high density EPS panels with R-25 rating.
I-Beam Studs:
24-gauge galvanized steel ladder ties create a tremendous strand structure for concrete pouring plus a continuous vertical stud for drywall or siding on 12” centers.
Bottom and Top C-Channel:
For laying out and keeping walls straight.
EPS ICF Panels
Available in any custom height up to 12 ft.
2.5 in. standard thickness
–
available up to 4 in. thickness
8 in. standard width
1.95 pcf minimum density
R-Value of 4.6/in. @ 40° F
EPS Panel Manual
EPS Corner Sets
Pre-Molded corners
Available in any custom angle
Available for any width wall
Available with or without attachment strip
EPS Corner Set Manual
Polyvinyl Chloride (PVC) I-Beams/Studs
Custom heights to 16 ft.
Nominal concrete widths of 4, 6, 8 & 10 in.
Rebar positioners
6 in. cross-tie spacing
Cost-effective
Lightweight
Easy to cut/modify
Recycled material
Continuous attachment from footing to sill plate
I-Beams/Studs Manual
Steel I-Beams/Studs
Custom heights to 16 ft.
Nominal concrete widths from 4 to 24 inches (in increments of 2")
12 in. cross-tie spacing
Rolled 26-gauge (doubled) galvanized steel
Custom configurations for drop-brick ledge
Continuous attachment from footing to sill plate
I-Beams/Studs Manual
C-Channel
Eliminates the need for horizontal walers
Pre-stamped corner peices
Unique feature of TF System®
Keeps walls straight
C-Channel Manual
