Structural Insulated Panel (SIPs) Energy Efficiency
Whole Wall R-Value Study
A 4-1/2" thick R-Control® Structural Insulated Panel wall was tested against 2x4 and 2x6 traditionally framed walls. The R-Control® Structural Insulated Panel significantly outperformed 2x4 stud walls and also outperformed thicker 2x6 stud walls. Results are conclusive: 4-1/2" R-Control® Structural Insulated Panels have better whole-wall R-Value than 2x6 batt-insulated construction.
The test program was sponsored by the Structural In
sulated Panel Association (SIPA). Testing demonstrated that Structural Insulated Panel connections did not create cold spots. This contrasted to stick-built walls which had cold spots over each lumber stud in the testing. Dramatically reducing cold spot s provides a more comfortable interior environment, an advantage in building with R-Control® Structural Insulated Panels.

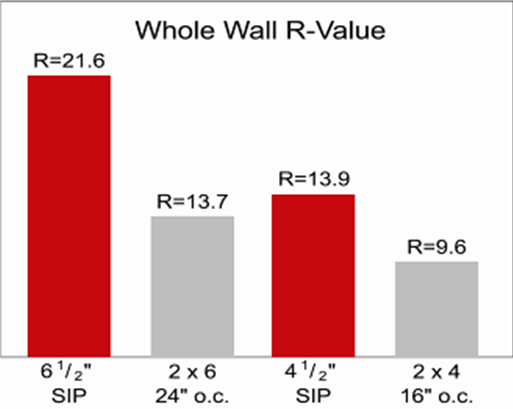

SIPs R-Value Study Results

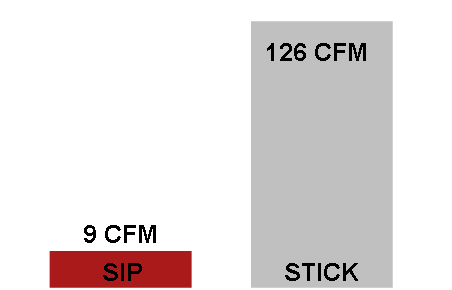

Whole Room Air Infiltration

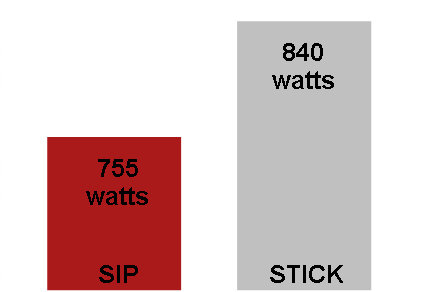

Whole Room Energy Use
SIPs R-Values & Thicknesses
Thickness
4-1/2"
6-1/2"
8-1/4"
10-1/4"
12-1/4"
R-Value
at 75° F
14.9
22.6
29.3
37.0
44.7
R-Value
at 40° F
16.0
24.3
31.6
39.9
48.3
